Wismec ES300 EXO SKELETON Kit

• Brand: Wismec
• Unit: set
• Net Weight: 450(g)

Combined shipping cost will be calculated automatically by the system after you choose shipping destination in the checkout step.

INTRODUCTION

Product introduction

Wismec new product-Wismec ES300 battery With KAGE Atomizer Full Kit. Having a top 0.66inch OLED display and user-friendly interface, the new EXO SKELETON ES300 comes with two or three replaceable 18650 cells whose maximum output can reach 200W or 300W for your preference. Featuring the retractable top fill system and bottom airflow control, the KAGE atomizer with brand-new WT series coils will provide you with optimal flavor and huge cloud. Powerful yet intelligent, the replaceable decorative cases in attractive colors make the whole setup much charming and unique.

Parameters

EXO SKELETON ES300:
Size:50.7mm*49.7mm*86.0mm
Thread type: 510 spring loaded thread
Cell type: High-rate 18650 cell (Not Included)
Output Mode:Input voltage: DC 5V
Output mode: VW/TC-NI/TC-TI/TC-SS/TCR
Output Wattage:1-200W(2 cells),1-300W(3 cells)
Resistance Range: 0.05-1.5ohm (TC modes); 0.1-3.5ohm (VW mode)
Temperature Range:100-315°C/200-600°F(TC Modes)
Maximum Charging Current：2A
Maximum Output Current：50A
Output Voltage Range: 0.5-9V

KAGE Atomizer:
Length: 55.1mm
Diameter：28mm
E-liquid Capacity：2.8ml

Wismec ES300 EXO SKELETON Kit comes with

1pc ES300 Battery(no cells)
1pc KAGE Atomizer
1pc WT-H2 0.4ohm Head

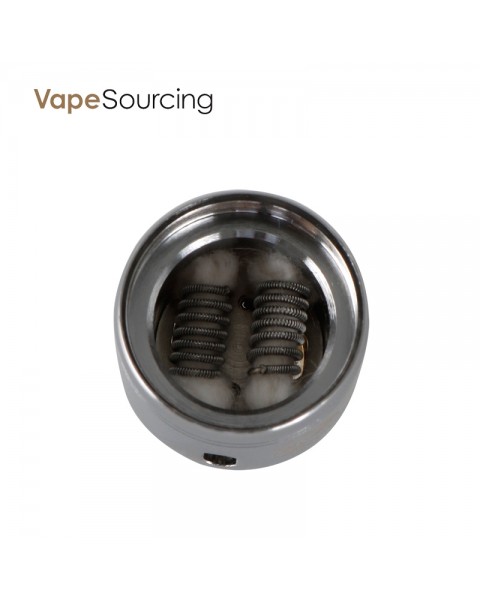

1pc WT-V3 0.17ohm Head
1pc QC USB Cable
2pcs User Manual
2pcs Warning Card
Spare Parts

SPECIFICATION

Features

1. 200/300W Powerful Output for Your Preference: With two cells, the maximum output power is 200W while the output power reaches 300W with three cells. And the maximum output voltage is 8V and 9V respectively.

2. Creative LED Light for Visual Enjoyment: The application of LED light makes your mod much charming and fashionable, bringing much visual enjoyment.

3. Innovative Design with Transparent Frame: The innovative design features the polygonal appearance and transparent body, allowing you view the internal structure clearly.

4. Replaceable Decorative Cases in Attractive Colors: By unscrewing the screws only, you can replace a different case for ES300 quickly and easily.

5.The KAGE atomizer comes with new WT Coils: WT-H2 0.5ohm Head and WT-V3 0.17ohm Head, providing you with different vaping experience.

6.Retractable Top Fill Solution & Creative Childproof Lock System & Bottom Airflow Control

7. Detachable Structure for Easy Cleaning: All the parts of the KAGE atomizer can be detached and reassembled for easy cleaning.

8. Flip-open Battery Cover for Easy Exchange: The flip-open cover with ventilation holes is designed for easier cells replacement and better heat dissipation.

9. 2A Max Charging Current for Quick Charge
Both of the USB ports are plated which can support 2A max charging current. And it will get fully charged quickly when using the Avatar Quick Charger (sell separately).

10. Innovative Buck-boost Technology & New balance charge System

11. Dual Circuit Protection & Reverse Polarity Protection: Reverse polarity protection is effectively achieved by the application of special battery anti reverse circuit in the circuit board. And the dual circuit protection systems make the PREDATOR 228 much safe and reliable.

12. Serving as a Power Bank for Reverse Charging: With the help of RC (reverse charging) adapter, ES300 can serve as a power bank to charge other electronic devices.

13. Upgradeable Firmware with Creative LED Light: Coming with the upgradeable firmware, you can choose the LED light on/off to your preference.

14. Charging It is better to take out the cells and charge them through external charger. You can also charge the device by connecting it with a computer or a wall adapter via USB cable.

GUARANTEE

3 Months for Battery/ Mod. Atomizer & Accessories are DOA (Dead On Arrival), please contact us within 72 hours of delivery.

ORDERING TIPS

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
