Joyetech Ocular C Touchscreen 150W TC Box Mod

• Brand: Joyetech
• Unit: set
• Type: Box Mod

• Net Weight: 320(g)

The combined shipping cost will be calculated automatically by the system after you choose the shipping destination in the checkout step.

INTRODUCTION

Product introduction

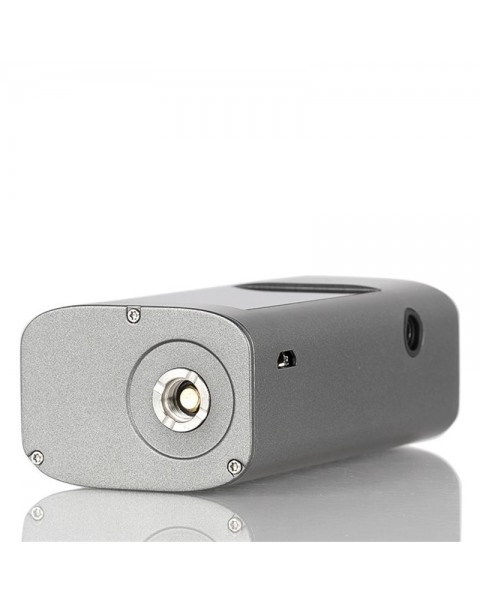

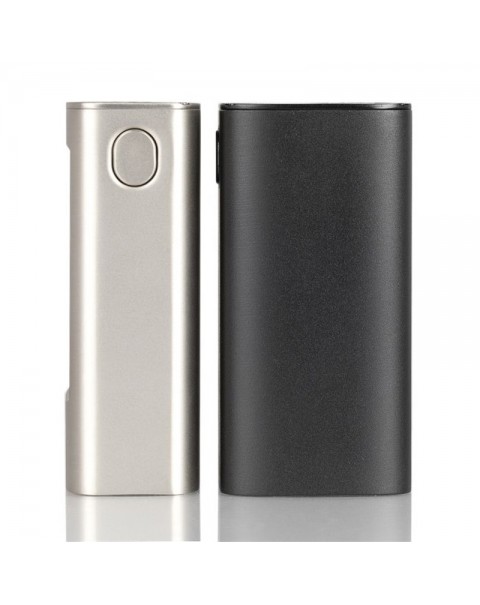

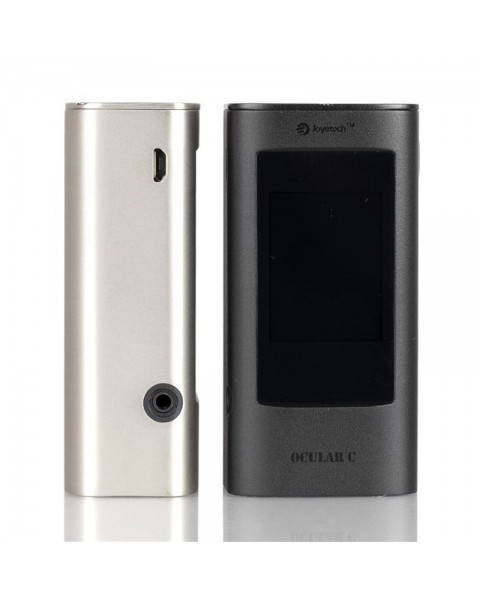

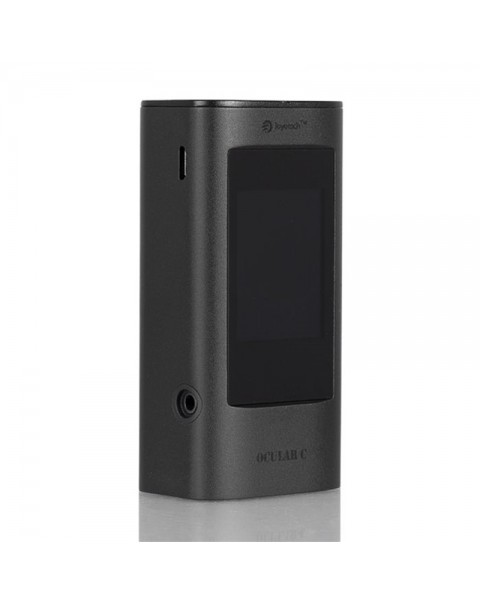

The Joyetech Ocular C Mod has been designed to integrate all of Joyetech's most cutting edge functionalities while maintaining an elegant visually stunning chassis and providing a multimedia-driven vaping experience. The Joyetech Ocular C has an extremely solid and premium feel to it and the brushed stainless steel finish looks great. The Ocular C is powered by two replaceable batteries where maximum output can be reached to 150W, making it powerful and convenient. We kindly recommend high-rate 18650 cells with continuous discharge current25A. Ocular C Mod applies a sophisticated temperature control suite coupled, providing accurate temperature control features with Nickel, Stainless Steel, and Titanium coils. On the top of the Ocular C is the 510 connector with a springy positive pin. On the front is a large black panel that houses the touch screen, where all the information is shown. The fire button is on the right side, and on the left side is the micro USB charge/upgrade port and the 3.5mm headphone jack. The battery door is on the bottom of the device, which is secured with a spring-loaded clip. The battery door includes holes for cooling and venting.

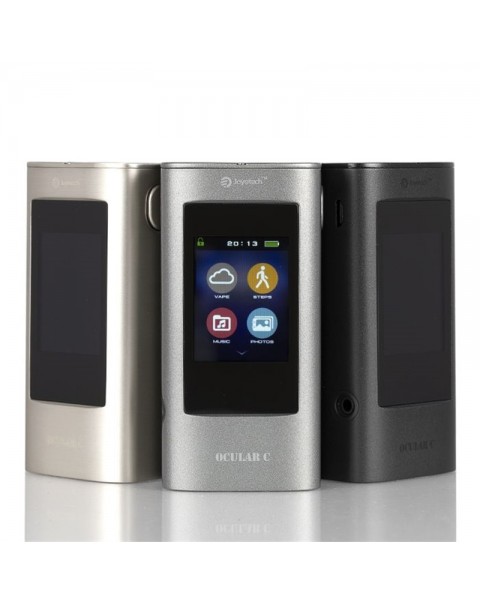

The Joyetech Ocular C mod presents a 1.68 Inch TFT Touch Screen with full-color support, providing an aesthetically pleasing and easy to use interface, with intuitive gestures to control the operation of the device. One of the first of its kind, the Ocular C implements multimedia support, featuring MP3 Music and Photo Player with a built-in 2GB of flash storage. The construction of a 3.5mm jack allows for music on the go (headphones sold separately). This device also features a fully customizable screen saver that can display both, digital/analog clocks, as well as any 240 x 320 stored photos or .jpg files that are on the device. The Ocular C provides a complete Puff History that displays the user's vaping habits by day, and a Puff Counter that can be used to show the overall puffs taken and even set a daily puff limit.

Parameters

Mod Size: 32.00*45.00*91.50mm

Battery Using: Two replaceable high rate of 18650 cells(Not Included)

Output Wattage: 1-150W

Output Mode: VW/VT(Ni, Ti, SS316)/TCR Mode

Resistance Range: 0.05-1.5ohm for VT/TCR mode; 0.1-3.5ohm for VW mode

Temperature Range: 100-315°C/ 200-600°F

Memory Capacity: 2GB

Screen Type: 1.68 inches TFT/CTP(Capacity Touch Panel) Screen

Resolution: 320*240 dpi

Charging Port: MicroUSB Port

Stainless Steel 510 Connection

Colors: Silver, Black, Grey

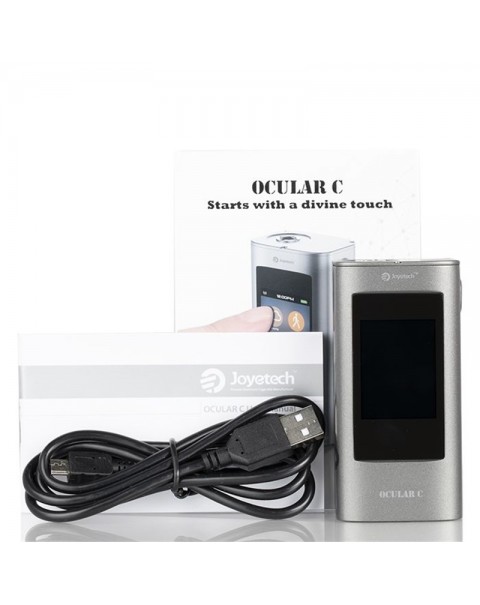

Joyetech Ocular C Touchscreen 150W TC Box Mod comes with

1 * Ocular C (no cell)

1 * USB Cable

1 * Manual

1 * Warranty Card

1 * Warning Card

SPECIFICATION

Features

• 150W max output with powered by dual replaceable batteries

• 1.68 Inch TFT Full Color Capacitive Touch Screen

• Slide to view photos

• Temperature Coefficient of Resistance (TCR) Adjustments

• Multimedia Mode - MP3 Player & Photo Storage

• Built-In 3.5mm Headphone Jack

• Bluetooth Capable

• 2GB Memory Capacity

• VT software for upgrading and uploading

• Connect with your mobile APP

• Exquisite 510 Stainless Steel Thread

• Micro USB cable, Charging & Upgrading

GUARANTEE

3 Months for Battery/ Mod. Atomizer & Accessories are DOA (Dead On Arrival), please contact us within 72 hours of delivery.

ORDERING TIPS

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
