Eleaf iKonn 220 Kit

• Brand: Eleaf
• Unit: set
• Net Weight: 400(g)

Combined shipping cost will be calculated automatically by the system after you choose shipping destination in the checkout step.

INTRODUCTION

Product introduction

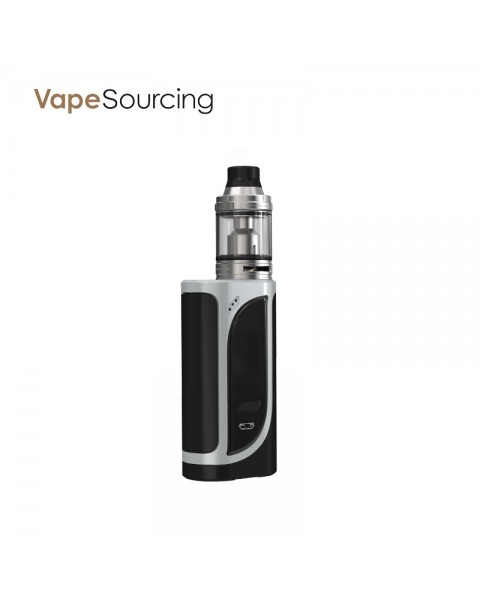

Eleaf iKonn 220 Kit provides a maximum power of 220W, powered by dual 18650 batteries, an upgradeable firmware alongside a big 0.91-inch screen that offers a concise and clear interface with two separate battery bars. It features a battery balancing trickle charge system and a 2A quick charge capability. The innovative RC adapter will convert the iKonn 220’s 510 connection into a USB output for power bank mode. The ELLO atomizer that features new powerful HW coils and a retractable top fill system, pairs with the iKonn 220 perfectly for cloud chasers.

Parameters

Size: 44mm*28mm*135mm (with ELLO 4ml type)
44mm*28mm*126mm (with ELLO 2ml type)
Output wattage: 1-220W
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 cells (not included)
Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes) / 0.1-3.5ohm (VW mode)
Temperature range: 100－315℃/200－600℉(TC modes)

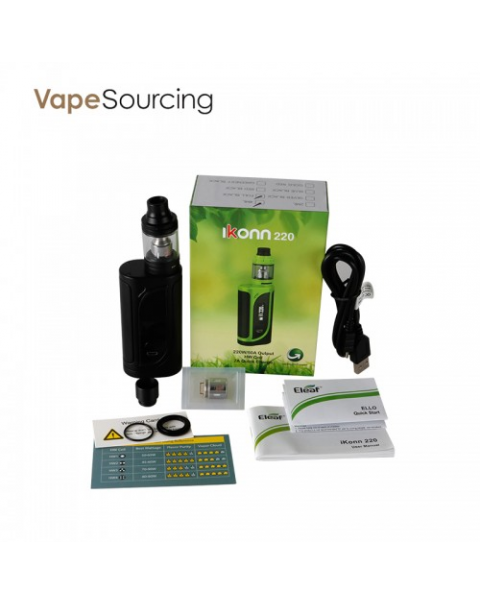

Eleaf iKonn 220 Kit comes with

iKonn 220 Kit - 2ml
1x iKonn 220 battery body
1x Ello 2ml atomizer （pre-installed HW3 0.2ohm head）
1x Extra HW4 Quad-cylinder 0.3ohm head
1x Extra 4ml glass tube
1x Air Pipe
1x B Type mouthpiece
1x Set sealing ring
1x QC USB cable
1x Warning card

iKonn 220 Kit - 4ml
1x iKonn 220 battery body
1x Ello 4ml atomizer （pre-installed HW3 0.2ohm head）
1x Extra HW4 Quad-cylinder 0.3ohm head
1x B Type mouthpiece
1x Set sealing ring
1x QC USB cable
1x Warning card

SPECIFICATION

Features

1. Higher Output of 220W

Powered by dual 18650 batteries, the iKonn 220 is capable of outputting a maximum power of 220W, providing you with a large amount of vapor production.

2. New Powerful HW3 and HW4 Coils
The iKonn 220 with ELLO comes with new HW coils: HW3 Triple-Cylinder 0.3ohm Head and HW4 Quad-Cylinder 0.2ohm Head for cloud chasing.

3. Big Concise 0.91-Inch Screen with Dual Battery Bars
The iKonn 220 comes with a big 0.91-inch screen that offers a concise and clear interface with dual battery bars respectively revealing the battery levels of two 18650 batteries.

4. 2A Maximum Charging Current for Quick Charge
With 2A maximum charging current, the batteries can be fully charged much more quickly.

5. Battery Balancing Trickle Charge System
A battery balancing trickle charge system is introduced into the iKonn 220 to bring two batteries to the equal level charge, which also ensures high security in charging.

6. Preheat Function & Switchable Interfaces

7. Offering 4ml and 2ml Options
There are two versions of atomizers for you to choose to go with the iKonn 220: ELLO (4ml) type & ELLO (2ml) type

8. Convenient Retractable Top Fill
To fill the ELLO tank, you just need to slide the top cap with drip tip back to reveal the fill port.

9. Offering Two Drip Tips

The ELLO provides two drip tips for you, one with a tapered elegant shape and the other with a wider bore for more airflow and flavorful taste.

10. High Compatibility
The iKonn 220 can handle tanks up to 28mm diameter.

11. Capable of serving as a power bank

GUARANTEE

3 Months for Battery/ Mod. Atomizer & Accessories are DOA (Dead On Arrival), please contact us within 72 hours of delivery.

ORDERING TIPS

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
