Asmodus Minikin Kodama 21700 Box Mod 180W

• Brand: Asmodus
• Unit: set
• Type: Box Mod

• Net Weight: 150(g)

The combined shipping cost will be calculated automatically by the system after you choose the shipping destination in the checkout step.

INTRODUCTION

Product introduction

Asmodus Minikin Kodama 21700 Box Mod is a beautiful, refined, and powerful high-quality and sophisticated device, which is constructed of Stabilized wood and resin. It is also the first Asmodus stab wood device to adopt the 21700 sized battery and utilizes an advanced chipset. Comfortable for any user, the Minikin 21700 Kodama will fit perfectly in any user's hand with its triangular shape the user has ever held. The ergonomic body which is contoured for a perfect fit no matter how you choose grab device drops touchscreen for tactile adjustment firing buttons. Asmodus Minikin Kodama TC Box Mod is powered by dual 21700 batteries with max 180W output. Capable of outputting 180w in VW and wattage curve modes and 120w in temperature control modes, the asMODus Minikin 21700 sports a more advanced version of the Minikin 2 chipset, the GX-180tc-2, that brings with it a 0.96inch high definition color screen as well as improved power efficiency. Batteries are quickly swapped in this device through the use of a hinged bottom loading battery door which swings open and closed with ease and then locks into place by pushing the tab in. The Minikin Kodama 21700 can also be upgraded firmware with a micro USB port (which doubles as a charging interface). Get high quality, stable and secure vape mod.

Parameters

Battery Type: Dual 21700 Li-ion cells (not included)

Chipset: GX-180TC-2 chipset

Modes: VW(Variable wattage)/Wattage curve/TC(Ni200/Ti/SS304/SS316/SS317)/TCR/TFR

Power output range: 5-180W (VW/Curve) / 5-120W (TC/TCR/TFR)

Temp control range: 212-572ºF/100-300ºC

Maximum voltage output: 7.5V

Maximum current output: 35.0A

Atomizer resistance range: 0.1-3.0Ω

Display: 0.96" HD full color display

Protections: Reverse polarity, short-circuit, low-voltage, overcharge, no-load, low resistance, high resistance, over time, and overheat protection

Material: Stabilized wood and resin

Charging Port: Micro USB firmware update port

Thread: Stainless steel 510 connection with gold plated 510 pin

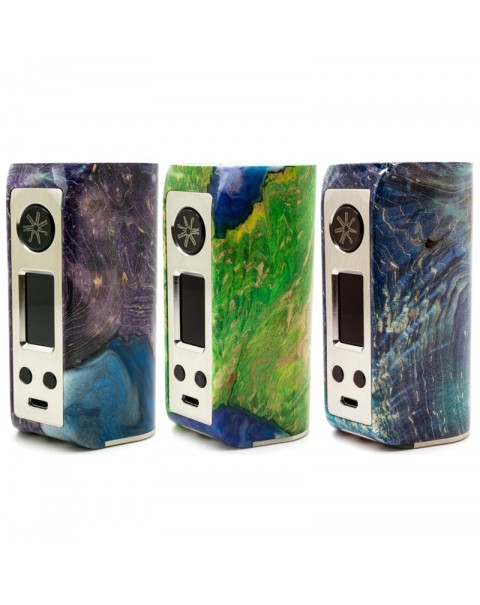

Colors: Green, Blue, Purple

Asmodus Minikin Kodama 21700 Box Mod 180W comes with

1* Minikin Kodama Mod

1* USB cable

1* User manual

SPECIFICATION

Features

• Powered by a married pair of high-drain 21700 Li-ion cells

• GX-180TC-2 chipset

• Supports up to 180W output

• Variable wattage, wattage curve, TC, TFR, and TCR functionality

• TC support for Ni200 nickel, titanium, SS304, SS316, SS317 heating elements

• Stabilized wood and resin chassis

• 0.96" HD full-color display

• ECO/Stealth mode

• Firmware update support

• Micro USB firmware update port

• Stainless steel 510 connection

• Gold plated 510 pin

GUARANTEE

3 Months for Battery/ Mod. Atomizer & Accessories are DOA (Dead On Arrival), please contact us within 72 hours of delivery.

ORDERING TIPS

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
